High Glue Content Ship Launching Airbags Long Service Life
Marine Airbags Features
Using Marine airbag launching is a have independent intellectual
property rights of innovative technology in China, is a very
promising new process, it overcomes the small and medium-sized
shipyard ship ever repaired the ability to slide, slide the
restriction of traditional craft, because has the characteristics
of less investment, quick effect, safe and reliable, get the
welcome of the shipbuilding industry. Ship hoisting gasbag and
scroll airbags as the main tool that will ship retainer on the
balloon, from shipbuilding and ship repairing field into waters or
migrate ashore from the water, using the Marine rubber airbag low
inflation pressure, large bearing area and the characteristic of
the still easy rolling after large deformation, use hoisting gasbag
first ship lift from the block, on the scroll air bags, and then
through the rolling traction and airbag, make the ship slowly slide
into the water. Based on its innovative technology, Qingdao beierte
Marine airbag designs and produces a new type of integral winding
high strength Marine launching airbag, thus providing the most
effective guarantee for the large ship's airbags launching
technology.
Ship launching airbags is divided into: low pressure airbag, medium
pressure airbag, high pressure airbag.
Ship Launching Airbag performance and specifications
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: |
According to different launching requirements, different ship types
and different ship weights, the slope ratio of berth is different,
and the size of Marine airbag is different.
If there are special requirements, can be customized.
|
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23 |
Marine launching Airbag accessories

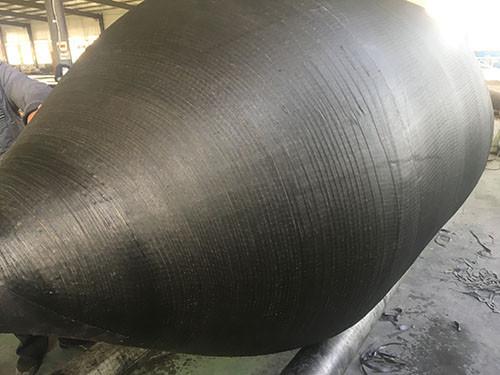

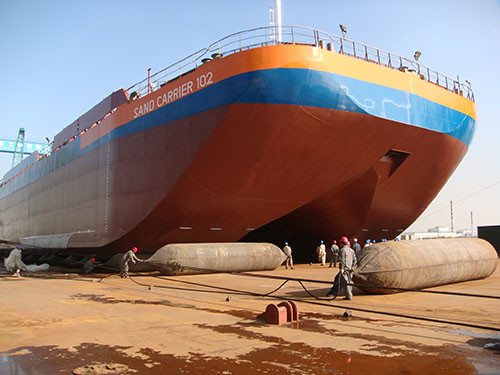

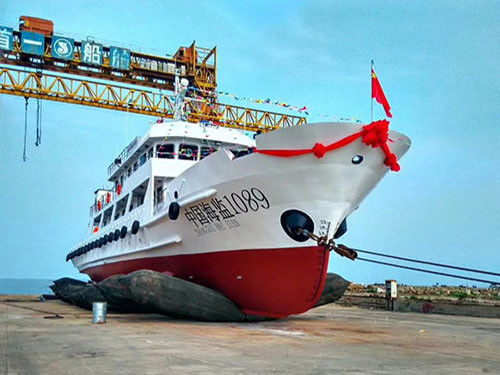

Ship Launching Airbag product display
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
