Ship Airbags Inflatable Compressed Air Marine Salvage Airbag
Main business of the company
Company's long-term commitment to Boat Lift Airbags, Marine salvage
airbags, yokohama pneumatic fender, Marine pneumatic fender,
inflatable rubber fender, pneumatic rubber fender, yokohama fender,
research and development, production and sales of the pneumatic
fender in yokohama, using natural rubber and styrene butadiene
rubber, polybutadience rubber, such as synthetic rubber, rubber
hard, more abrasion resistance and toughness, product use high
quality materials and special explosion-proof technology,
sightseeing along the outside, good wear resistance, aging
resistance, air tightness, high intensity, long service life, high
quality, and through the ISO17357 and ISO9001: 2008 international
quality management system certification and CCS, ABS, BV, DNV, GL,
LR and other product quality certification, and for the national
large construction enterprises and wharf protection to provide
products and services.
Marine salvage airbag performance and specifications
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: |
According to different launching requirements, different ship types
and different ship weights, the slope ratio of berth is different,
and the size of Marine airbag is different.
If there are special requirements, can be customized.
|
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23 |
Marine air bag, ship airbag, launching airbag advantages:
1.The construction of the Save a lot of money Using ship airbags on
the way, the water launching is a promising new technology,
changing the repaired the ship can only adopt slipway, floating
dock, the dock water way, thereby saving the chute, dock, the dock
into the constructed a lot of money, and thus reduce the upfront
costs of the construction yard.
2, greatly improve the ability of shipyard built Because the
traditional way of fluctuation restricted the shipyard's production
capacity, use of Marine airbags flexible fluctuation radically
changed only use slipway, dock in the work of the traditional way
of the ground can be used in the work of then use airbag launching
way, so that it can greatly improve the repaired the ability of
shipyard.
Marine launching Airbag accessories

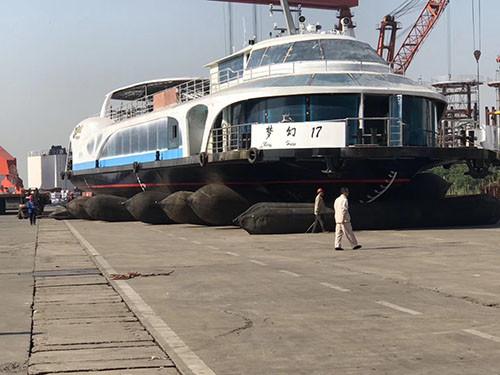

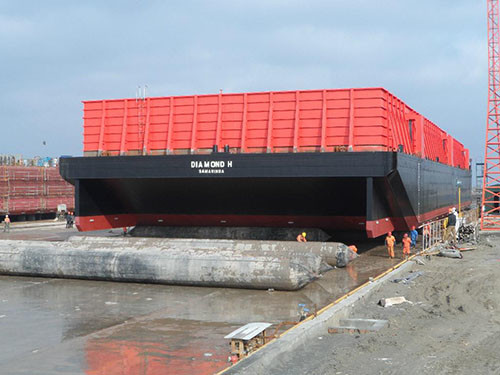

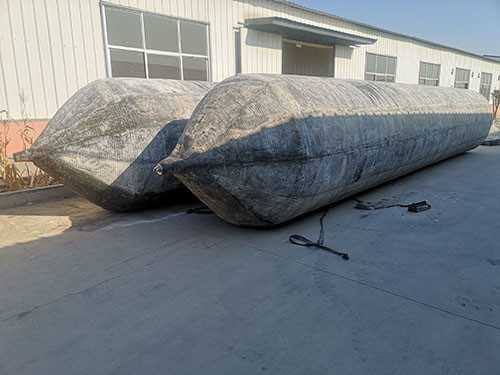

Marine salvage airbag product display
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
