Pneumatic Rubber Airbag For Wreck Rescue Marine Salvage Airbags
Marine Salvage Airbags
1. Marine airbags and salvage airbag are widely used in maritime
salvage AIDS in floating, including the rescue of stranded ships or
AIDS in floating and sinking ships and so on. Due to the unexpected
and time-sensitive nature of maritime salvage projects, if the
salvage company adopts conventional lifting methods, it is often
subject to large lifting equipment or needs to spend high costs. By
adopting the auxiliary technology of salvage airbag, the salvage
company can complete the salvage work quickly and flexibly.
2. The overall salvage methods of large sunken ships mainly include
buoy salvage and floating crane salvage. At present, the buoy used
in the buoy method is almost rigid buoy of hard material. Rigid
buoys have high lifting capacity and are easily affected by the
underwater environment when they are submerged and tied to sunken
ships. In addition, the buoys occupy large space and incur high
storage and transportation costs.
3. Large floating cranes are the main tools for maritime salvage,
but they are often limited by the lifting capacity of cranes and
high transportation costs, which will lead to the increase of
salvage costs.
4. The Marine salvage airbags made of flexible materials is
flexible and multi-purpose, which can be folded or rolled into a
cylinder for storage and transportation or diving, greatly
improving the salvage ability of the salvage company. The salvage
airbag can be inserted into the flooded cabin or fixed to the
sunken ship deck, which has little force on the unit area of the
hull and is beneficial to the safety of the hull. The influence of
hydrological condition is relatively small when the salvage airbags
dives, and the underwater operation efficiency is high.

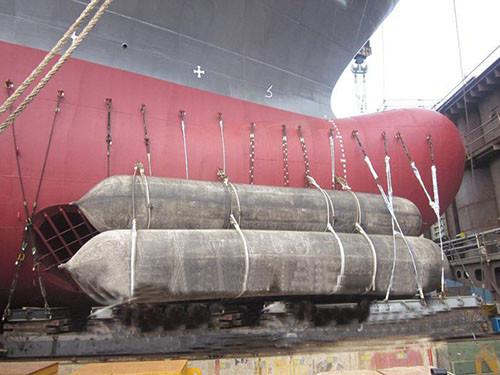

5. Marine salvage airbag and Marine airbags can not only provide
buoyancy for ship salvage, but also have great advantages in
rescuing stranded ships. Through the launching airbags can be
inserted into the bottom of the stranded ship, salvage airbag
inflated can be jacked up the ship, in the action of dragging or
after the thrust, the ship can be smoothly into the water.
Marine salvage airbag performance and specifications
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23
|
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: |
According to different launching requirements, different ship types
and different ship weights, the slope ratio of berth is different,
and the size of Marine airbag is different.
If there are special requirements, can be customized.
|
Marine launching Airbag accessories

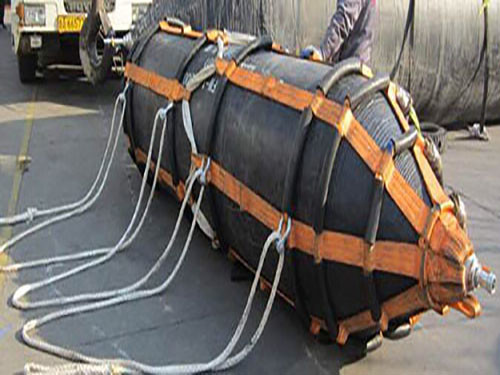

Marine salvage airbag product display
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services.
