Marine Airbag Custom All Kinds Of Buoyancy Marine Salvage Airbag
Marine Airbag Features
Using Marine airbag launching is a have independent intellectual
property rights of innovative technology in China, is a very
promising new process, it overcomes the small and medium-sized
shipyard ship ever repaired the ability to slide, slide the
restriction of traditional craft, because has the characteristics
of less investment, quick effect, safe and reliable, get the
welcome of the shipbuilding industry. Ship hoisting gasbag and
scroll airbags as the main tool that will ship retainer on the
balloon, from shipbuilding and ship repairing field into waters or
migrate ashore from the water, using the Marine rubber airbag low
inflation pressure, large bearing area and the characteristic of
the still easy rolling after large deformation, use hoisting gasbag
first ship lift from the block, on the scroll air bags, and then
through the rolling traction and airbag, make the ship slowly slide
into the water. Based on its innovative technology, Qingdao beierte
Marine airbag designs and produces a new type of integral winding
high strength Marine launching airbag, thus providing the most
effective guarantee for the large ship's airbags launching
technology.
Ship launching airbags is divided into: low pressure airbag, medium
pressure airbag, high pressure airbag.
Marine salvage airbag performance and specifications
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23 |
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: |
According to different launching requirements, different ship types
and different ship weights, the slope ratio of berth is different,
and the size of Marine airbag is different.
If there are special requirements, can be customized.
|
Main business of the company
Company's long-term commitment to Boat Lift Airbags, Marine salvage
airbags, yokohama pneumatic fender, Marine pneumatic fender,
inflatable rubber fender, pneumatic rubber fender, yokohama fender,
research and development, production and sales of the pneumatic
fender in yokohama, using natural rubber and styrene butadiene
rubber, polybutadience rubber, such as synthetic rubber, rubber
hard, more abrasion resistance and toughness, product use high
quality materials and special explosion-proof technology,
sightseeing along the outside, good wear resistance, aging
resistance, air tightness, high intensity, long service life, high
quality, and through the ISO17357 and ISO9001: 2008 international
quality management system certification and CCS, ABS, BV, DNV, GL,
LR and other product quality certification, and for the national
large construction enterprises and wharf protection to provide
products and services.
Marine launching Airbag accessories

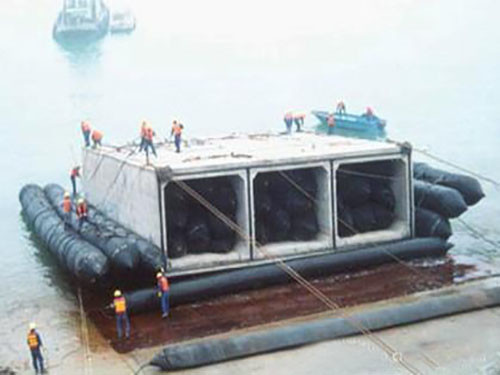

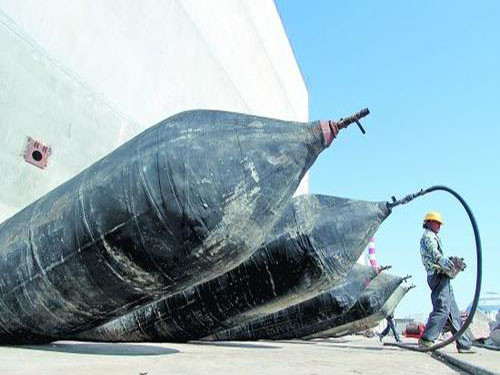

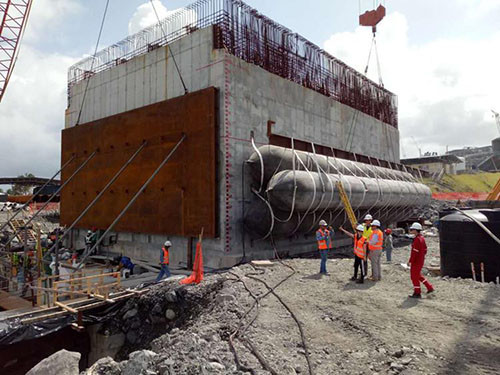

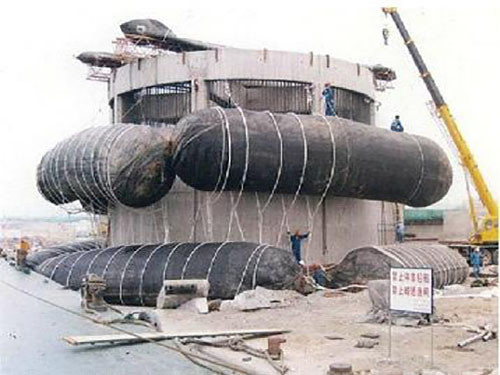

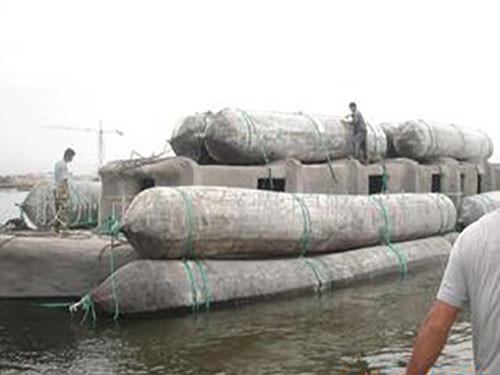

Marine salvage airbag product display
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
