Boat Lift Airbags Customized Large Inflatable Nozzle Special Marine
AirBag
Main business of the company
Company's long-term commitment to Boat Lift Airbags, Marine salvage
airbags, yokohama pneumatic fender, Marine pneumatic fender,
inflatable rubber fender, pneumatic rubber fender, yokohama fender,
research and development, production and sales of the pneumatic
fender in yokohama, using natural rubber and styrene butadiene
rubber, polybutadience rubber, such as synthetic rubber, rubber
hard, more abrasion resistance and toughness, product use high
quality materials and special explosion-proof technology,
sightseeing along the outside, good wear resistance, aging
resistance, air tightness, high intensity, long service life, high
quality, and through the ISO17357 and ISO9001: 2008 international
quality management system certification and CCS, ABS, BV, DNV, GL,
LR and other product quality certification, and for the national
large construction enterprises and wharf protection to provide
products and services.
Specification and performance of Marine airbags
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23 |
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: |
According to different launching requirements, different ship types
and different ship weights, the slope ratio of berth is different,
and the size of Marine airbag is different.
If there are special requirements, can be customized.
|
Marine launching airbag application fields:
1. The ship building industry and the ship repair industry are
mainly to launch the ship safely in the ship building industry, and
to shore the ship safely for repair in the ship repair industry.
2. It is used in the construction industry to carry super large
building structures. Such as the weight of more than 10,000 tons of
piers, wharf caisson and other large reinforced concrete structures
on the slope of displacement, salvage sunken ships, stranded rescue
and so on
Compared with the traditional skateboard and slide craft, it has
the characteristics of labor-saving, time-saving, labor-saving,
less investment, flexible mobility, safety and reliability. It is
suitable for all types of ships and construction.
Ship launching air bag is divided into: low pressure Airbag, medium
pressure Airbag, high pressure Aairbag.
Marine Airbag fittings

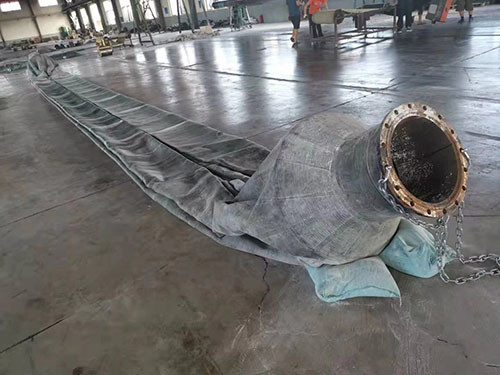

Marine launching airbag picture
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
