D2.5 X L4.0 Pneumatic Marine Fender 40 'Open Top Container
Transport
Introduction to pneumatic rubber fender
Yokohama pneumatic fender, inflatable rubber fender, pneumatic
rubber fender, Marine fender is popular in today's international
ship fender products, using compressed air as buffer medium, make
the ship when it is on the list has more soft wall effect, has big
impact energy absorption, covers an area of low pressure acting on
the ship, high impact fatigue performance, easy to install, etc;
Widely used in large oil tanker, liquefied gas ship, chemical ship,
offshore platform, large dock, sea, etc.; Beierte ship fender
products are reliable.
Common dimensions and performance table of pneumatic rubber fender:
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
There are two types of Yokohama fenders

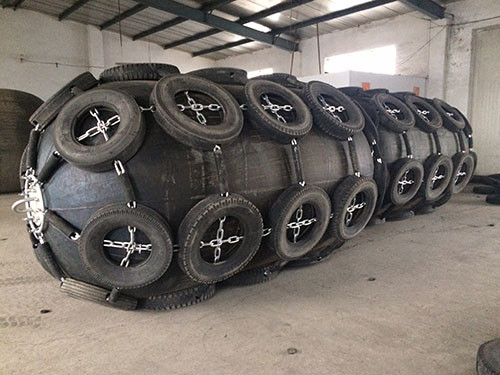

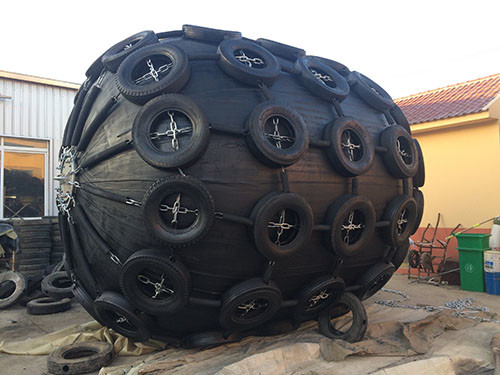

1, sheath type
The sheath type yokohama fender is covered with a sheath, which
consists of a chain, or nylon rope net, old tires (or rubber
sleeves). The longitudinal break point of the chain or nylon rope
net is connected with one or two adjacent mesh sets by cable or
pull rope. The mesh sets will be attached with tires or rubber
sleeves to provide protection for the fender body.
2. No sheath type
Fender without sheath type inflatable rubber fender is the fender
without net tire chain covering the surface. This kind of fender is
light and easy to move. At the same time, it makes the fender move
more flexibly in the work to deal with the impact from various
angles.
Pneumatic rubber fender structure diagram and compression
deformation test

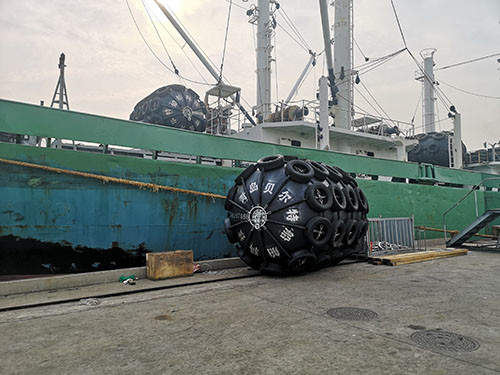

Pneumatic rubber fender product case
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
