Pneumatic Ship Fender High Pressure Reinforced Type
When the yokohama pneumatic rubber fender is used, the Angle can be
made up. When the ship is docked, there must be some surly
inflatable rubber fender energy component to play its performance
to realize inclined contact and increase the safety factor. The
inflatable rubber fender is widely used in wharves, docks, oil
tankers, freighters, ocean platforms, warships, military port
docks, buoys, cargo handling at sea, sea pipeline plugging and so
on. Products have been CCS, ABS, BV, DNV, GL, LR and other
classification societies quality inspection and certification.
Stable quality, perfect after-sales service, reasonable price, so
that every customer satisfaction.
Common dimensions and performance table of pneumatic rubber fender:
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
Pneumatic rubber fender, yokohama pneumatic fender features:
1, large energy absorption, small reaction force, so as to ensure
that neither damage the hull nor damage the shore wall.
2, simple installation, portable, in any ship, any sea area is not
affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the
force after the force is exerted. After the fender is squeezed,
more than 95% of the product will be released immediately after the
force.
4, good economic performance, pneumatic fender compared with the
same period, Beierte fender economic performance is good,
cost-effective, reliable quality. Beierte Fender has undergone
inspection from raw material purchasing, product ordering, product
production and product inspection to ensure its quality.
Pneumatic rubber fender structure diagram and compression
deformation test

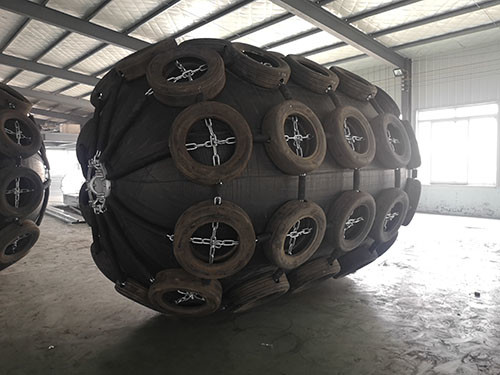

Pneumatic rubber fender product case
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
