80kPa Marine Pneumatic Fender 50kPa Ship Pneumatic Fender
Yokohama pneumatic fender is the international popular ship fender
products, the use of compressed air as a buffer medium, so that the
ship has a softer impact wall effect, with large impact energy
absorption, acting on the ship's area pressure is low, excellent
impact fatigue performance, easy installation and other advantages;
Widely used in large oil tanker, liquefied gas ship, chemical ship,
offshore platform, large dock, sea, etc.; Belter pneumatic fender
products are reliable
Common dimensions of Marine inflatable fender
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
Instructions for operation and maintenance
1. The maximum deformation of Marine inflatable fender in the use
process is 60% (except for special ship type or special operation),
and the use pressure is 50kpa-80kpa (the use pressure can be
determined according to the user's ship type, tonnage size and near
environment).
2. The inflatable fender of the ship should be used to avoid the
puncture and scratch of sharp objects; And timely maintenance and
maintenance, in general 5- 6 months for a pressure test.
3. Check regularly whether the fender body is puncted or scratched.
The surface objects in contact with the fender shall not have sharp
protruding hard objects to prevent puncturing the fender. When the
fender is in use, the cable or chain or wire rope hanging the
fender shall not be knotted.
4. When the fender is not used for a long time, it should be
cleaned and dried, filled with appropriate amount of gas, and
placed in a dry, cool and ventilated place.
5. The fender should be kept away from heat, and should not contact
with acid, alkali, grease and organic solvent.
6, do not pile up when not in use, do not pile up heavy objects on
the fender.
Pressure test for Marine inflatable fender

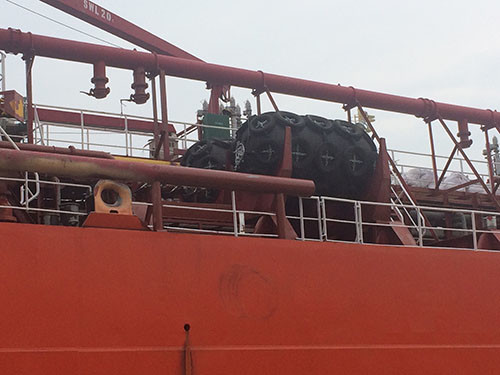

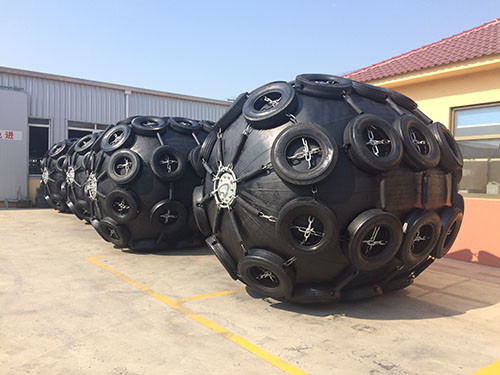

Marine inflatable fender products display
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
