80KPa High Pressure Resistant Inflatable Rubber Fender With Safety
Valve
The inflatable rubber fender is a popular ship fender product in
the world today. The compressed air is used as the buffer medium to
make the ship more soft and hit the wall when it is close to the
ship. It has the advantages of large impact energy absorption, low
area pressure acting on the ship, excellent impact fatigue
resistance, easy installation and so on. Widely used in large oil
tanker, liquefied gas ship, chemical ship, offshore platform, large
dock, sea, etc.; Beierte ship fenders products are reliable.
80kPa inflatable rubber fender commonly used dimensions performance
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
Features of inflatable rubber fender:
1, large energy absorption, small reaction force, so as to ensure
that neither damage the hull nor damage the shore wall.
2, simple installation, portable, in any ship, any sea area is not
affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the
force after the force is exerted. After the fender is squeezed,
more than 95% of the product will be released immediately after the
force.
4, good economic performance, compared with the fender, Beierte
pneumatic fenders economic performance is good, cost-effective,
reliable quality. Beierte Fenders has undergone inspection from raw
material purchasing, product ordering, product production and
product inspection to ensure its quality.
Aerated rubber fender structure:
Pneumatic ship fenders is divided into: inner rubber layer,
reinforced cord layer, outer rubber layer.
Function of inner adhesive layer: shape for fender, enhance air
tightness and ensure no air leakage.
Enhance connection layer: improve the strength of the transverse
fender, increase the tensile strength, increase the pressure.
Outer adhesive layer: improve the wear resistance of Marine
fenders, better protect the body of inflatable Marine fender, and
extend the service life
Schematic diagram of inflatable rubber fender
Compression deformation test of inflatable rubber fender

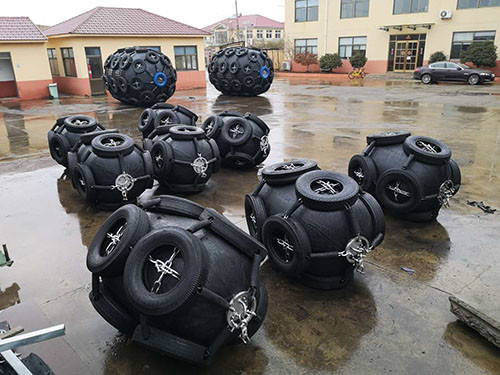

Pictures of inflatable rubber fender products
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
