Integral Winding Process Inflatable Rubber Fender Explosion-Proof
Yokohama pneumatic fender is the international popular ship fender
products, the use of compressed air as a buffer medium, so that the
ship has a softer impact wall effect, with large impact energy
absorption, acting on the ship's area pressure is low, excellent
impact fatigue performance, easy installation and other advantages;
Widely used in large oil tanker, liquefied gas ship, chemical ship,
offshore platform, large dock, sea, etc.; Beierte inflatable rubber
fender products are reliable.
Common dimensions and properties of inflatable rubber fender
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
There are two types of inflatable rubber fenders:
1. The protection cover model
The sheath type yokohama fender is covered with a sheath consisting
of a chain, or a nylon rope net, and old tires (or rubber sleeves).
The longitudinal break point of the chain or nylon rope net is
connected with one or two mesh holes of the adjacent mesh set with
a cable or pull rope. The mesh set will be attached with a tire or
rubber sleeve to provide protection for the fender body.
2. No sheath type
Fender without sheath type inflatable rubber fender is the fender
without net tire chain coverage outside the surface. This kind of
fender is light and easy to move, and makes the fender move more
flexibly in the work, so as to deal with the impact from various
angles.
Inflatable rubber fender features:
1, large energy absorption, small reaction force, so as to ensure
that neither damage the hull nor damage the shore wall.
2, simple installation, portable, in any ship, any sea area is not
affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the
force after the force is exerted. After the fender is squeezed,
more than 95% of the product will be released immediately after the
force.
4, good economic performance, compared with the fender, belt fender
economic performance is good, cost-effective, reliable quality.
Beierte Fender has undergone inspection from raw material
purchasing, product ordering, product production and product
inspection to ensure its quality.
Pneumatic ship fender structure:
Pneumatic ship fender is divided into: inner rubber layer,
reinforced cord layer, outer rubber layer.
Function of inner adhesive layer: shape for fender, enhance air
tightness and ensure no air leakage.
Enhance connection layer: improve the strength of the transverse
fender, increase the tensile strength, increase the pressure.
Outer layer: improve the wear resistance of Marine fender, better
protect the inflatable rubber fender body, prolong the service life
Inflatable rubber fender structure diagram
Compression test for inflatable rubber fender

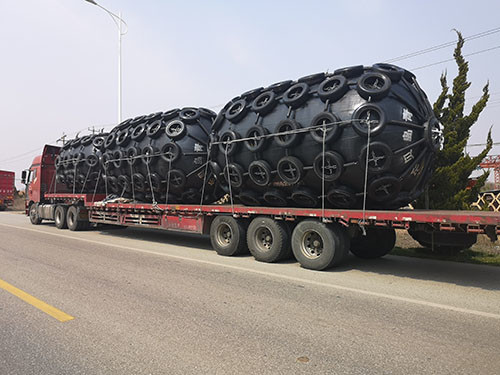

Picture of inflatable rubber fender
