    D3000 X L5000 Marine Pneumatic Rubber Fenders Winding Scratch Resistance

    Ask Lasest Price
    Brand Name : Beierte
    Model Number : D3000 X L5000
    Certification : BV/LR/CCS/ABS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 80 PCS/week
    Delivery Time : 2-10 days
    • Product Details
    • Company Profile

    D3000 X L5000 Marine Pneumatic Rubber Fenders Winding Scratch Resistance

    D3000 X L5000 Pneumatic Marine Fender Sent To Singapore

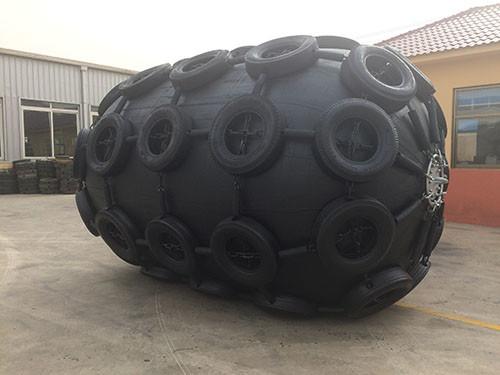

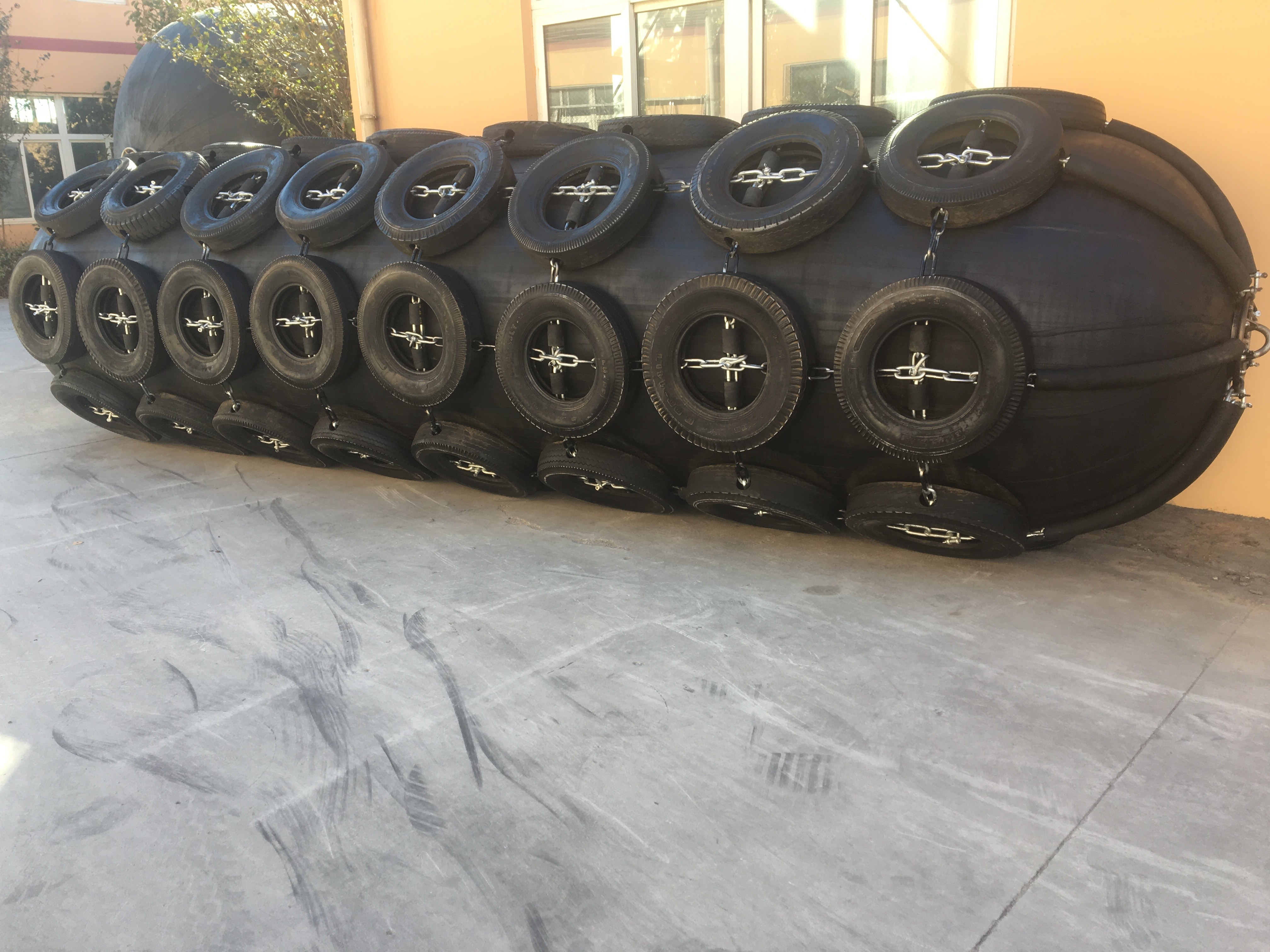

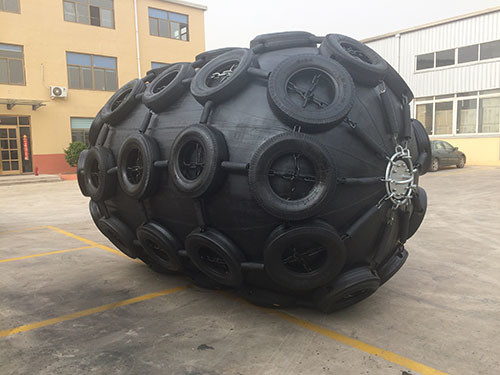

    Inflatable rubber fender is a new type of winding fender, abrasion resistance, scratch resistance, resistance to ageing, stung, etc, the appearance of the most prominent feature is the surface of the pneumatic rubber fender ontology by a tire chain net type sheathed packages, protect the fender of ontology is stung by sharp objects, scratches, drop and so on, which is a fender ontology use fixed number of year.


    Common dimensions and properties of pneumatic rubber fender

    SIZE

    Initial pressure is 80 kPa

    Compression deformation 60%

    Diameter(mm)Length (mm)Reactionforce-knEnergyabsorb kn-m
    5001000879
    600100010010
    700150018228
    1000150024140
    1000200034054
    1200200039269
    13502500563100
    15003000763174
    17003000842192
    200035001152334
    200040001591386
    250040001817700
    250055002655882
    3000500027151080
    3000600031071311
    3300450024781642
    3300600036542340
    3300650039632534

    Pneumatic rubber fender, yokohama pneumatic fender features:

    1, large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.

    2, simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.

    3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.

    4, good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Beierte Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.


    Pneumatic rubber fender structure diagram, compression deformation test


    Introduction to pneumatic rubber fender

    D3000 X L5000 Marine Pneumatic Rubber Fenders Winding Scratch ResistanceD3000 X L5000 Marine Pneumatic Rubber Fenders Winding Scratch ResistanceD3000 X L5000 Marine Pneumatic Rubber Fenders Winding Scratch ResistanceD3000 X L5000 Marine Pneumatic Rubber Fenders Winding Scratch Resistance


    Service tenet:

    Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;

    Rigorous and pragmatic, considerate; Serve every user attentively.


    After-sales service:

    1. All products of the company are produced in strict accordance with ISO17357:2014 standards.

    2, the company's products in normal use, the life of 8-10 years.

    3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.

    4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.

    5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.

    6. Instruct or participate in the implementation and application of products to various projects.

    7. Provide pre-sale, in-sale and after-sale services
