Marine Rubber AirBag Special Equipment For Ship Launching
Marine rubber airbag introduction
1. Some users use the Marine rubber airbag for the first time;For
Marine launch airbags selection is not very professional, in this
case, the user contact the air bag factory and provide the ship
length, width, dead weight tonnage, slipway slope and other
information, the factory will design the most cost-effective Marine
air bag for the user to use according to these data
2. Lifting airbag is to use the high bearing capacity of Marine
airbag to jack up the ship from the slipway, so that there is a
large space between the ship and the slipway, convenient for
placing launching airbag, so that the ship launches smoothly. The
production requirements of lifting air bag are very strict, and the
overall winding process must be adopted, and the thickness should
generally reach 10 layers.
3. The integral winding process refers to the use of a single
integral glue cord from the beginning to the end of the hanging
cord, and no lap or stitching process is allowed; Each layer should
be wound to form a cross wound with an Angle of 45 degrees.
Marine rubber airbag specifications and dimensions
| Size | Diameter | 1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m |
Effective Length | 8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc. |
| Layer | 4layer,5layer,6layer,8layer,10layer,12layer |
| Remark: | According to different launching requirements, different ship types
and different ship weights, the slope ratio of berth is different,
and the size of Marine airbag is different.
If there are special requirements, can be customized.
|
| Diameter | Layer | Working pressure | Working height | Guaranteed bearing capacity per unit length(T/M) |
| D=1.0m | 6-8 | 0.18MPa-0.22MPa | 0.5m-0.8m | ≥13.7 |
| D=1.2m | 6-8 | 0.17MPa-0.2MPa | 0.6m-1.0m | ≥16.34 |
| D=1.5m | 6-8 | 0.16Mpa-0.18MPa | 0.7m-1.2m | ≥18 |
| D=1.8m | 6-10 | 0.15MPa-0.18MPa | 0.7m-1.5m | ≥20 |
| D=2.0m | 8-12 | 0.17MPa-0.2MPa | 0.9m-1.7m | ≥21.6 |
| D=2.5m | 8-12 | 0.16MPa-0.19MPa | 1.0m-2.0m | ≥23 |
Marine rubber airbag accessories
Marine rubber airbag application field
1. The ship building industry and the ship repair industry are
mainly to launch the ship safely in the ship building industry, and
to shore the ship safely for repair in the ship repair industry.
2. It is used in the construction industry to carry super large
building structures. Such as the weight of more than 10,000 tons of
piers, wharf caisson and other large reinforced concrete structures
on the slope of displacement, salvage sunken ships, stranded rescue
and so on
Compared with the traditional skateboard and slide craft, it has
the characteristics of labor-saving, time-saving, labor-saving,
less investment, flexible mobility, safety and reliability. It is
suitable for all types of ships and construction.
Ship launching air bag is divided into: low pressure Airbag, medium
pressure Airbag, high pressure Aairbag.

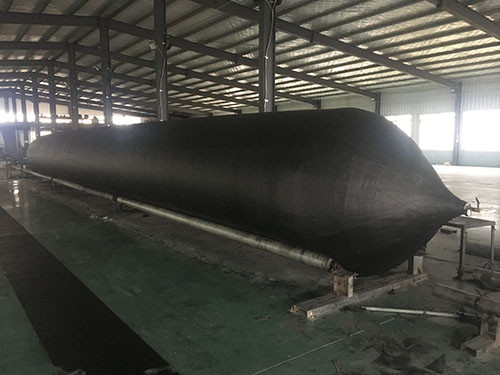

Marine rubber airbag product display
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
