    0.19MPa 15m Length Marine Salvage Airbags 65% Natural Rubber Content

    Ask Lasest Price
    Brand Name : Beierte
    Model Number : GY-25
    Certification : CCS/ABS/BV/DNV/LR
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 380 pcs/ month
    Delivery Time : 5-7Days
    • Product Details
    • Company Profile

    0.19MPa 15m Length Marine Salvage Airbags 65% Natural Rubber Content

    Marine airbag high pressure type natural rubber content above 65%

    Advantages of Marine Airbag:


    The construction of the 1, save a lot of money Ship Airbags on the way, the water is a promising new technology, changing the repaired the ship can only adopt slipway, floating dock, the dock water way, thereby saving the chute, dock, the dock into the constructed a lot of money, and thus reduce the upfront costs of the construction yard.

    2, greatly improve the ability of shipyard built Because the traditional way of fluctuation restricted the shipyard's production capacity, flexible fluctuation fundamentally changed the Airbags to only use slipway, dock in the work of the traditional way of the ground can be used in the work of then use Airbags launching way, so that it can greatly improve the repaired the ability of shipyard.


    Marine airbag application fields:


    1. The ship building industry and the ship repair industry mainly launch the ship safely in the ship building industry, and shore the ship safely for repair in the ship repair industry.

    2. It is used in the construction industry to carry super-large building structures. For example, large reinforced concrete structures such as piers and caisson of wharf weighing more than one thousand tons can be shifted up and down the slope, salvaged sunken ships, stranded and rescued

    Compared with the traditional skateboard and slide craft, it has the characteristics of labor saving, time saving, labor saving, less investment, flexibility, safety and reliability. It is suitable for all kinds of ship and construction.


    Marine airbag selection and size:


    SizeDiameter1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m

    Effective Length

    8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc.
    Layer

    4layer,5layer,6layer,8layer,10layer,12layer

    Remark:

    According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different.


    If there are special requirements, can be customized.



    Marine Airbag Performance:


    Diameter

    Layer

    Working pressure

    Working height


    Guaranteed bearing capacity per unit length(T/M)

    D=1.0m6-80.18MPa-0.22MPa0.5m-0.8m≥13.7

    D=1.2m


    6-80.17MPa-0.2MPa0.6m-1.0m≥16.34

    D=1.5m


    6-80.16Mpa-0.18MPa0.7m-1.2m≥18

    D=1.8m


    6-100.15MPa-0.18MPa0.7m-1.5m≥20
    D=2.0m8-120.17MPa-0.2MPa0.9m-1.7m≥21.6
    D=2.5m8-120.16MPa-0.19MPa1.0m-2.0m≥23

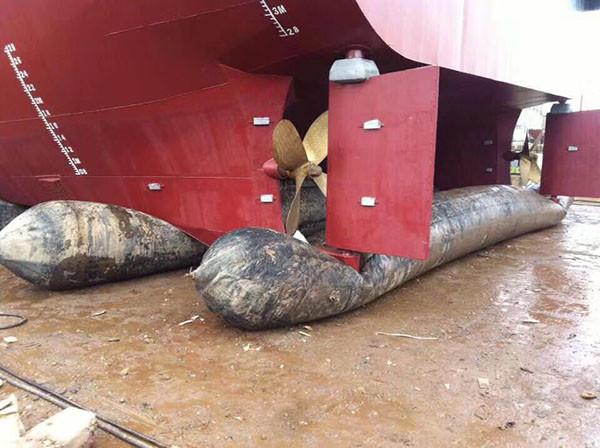

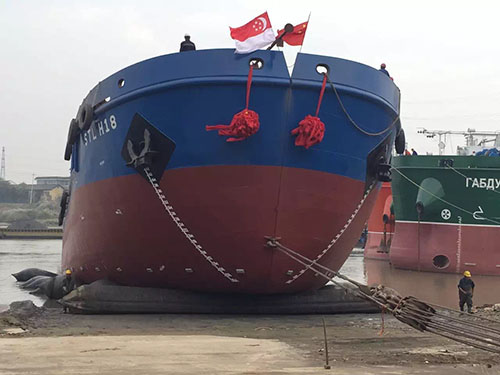

    Marine Airbag Case:
