Marine Inflatable Fender Is Suitable For Protection Between Wharf And Ship

There are two types of Marine inflatable fenders

1, sheath type

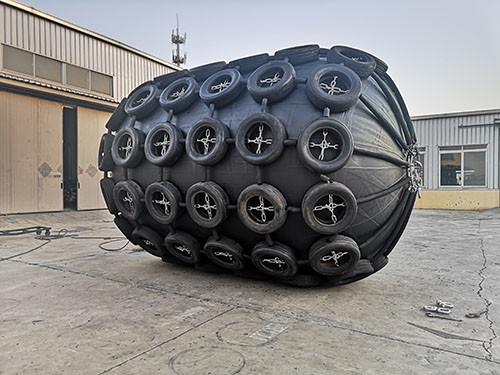

The sheath type yokohama fender is covered with a sheath consisting of a chain, or a nylon rope net, and old tires (or rubber sleeves). The longitudinal break point of the chain or nylon rope net is connected with one or two mesh holes of the adjacent mesh set with a cable or pull rope. The mesh set will be attached with a tire or rubber sleeve to provide protection for the fender body.

2. No sheath type

Non-sheath type pneumatic rubber fender is the fender which is not covered by mesh tire chain outside the surface. This kind of fender is light and easy to be moved. At the same time, it makes the fender move more flexibly in the work to deal with the impact from various angles.

Marine inflatable fender commonly used dimensions performance table:

Pneumatic rubber fender features:

1, large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.

2, simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.

3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.

4, good economic performance, compared with the fender, Beierte pneumatic fenders economic performance is good, cost-effective, reliable quality. Beierte ship fenders undergoes inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.

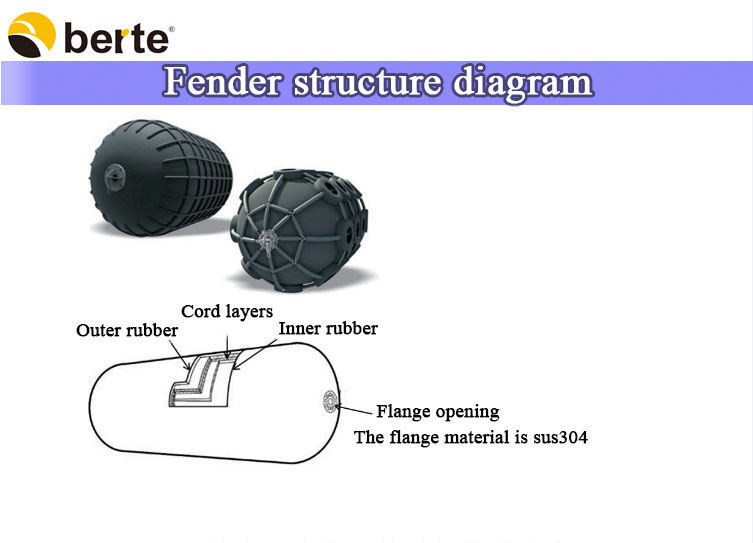

Pneumatic rubber fender structure diagram:

Pneumatic rubber fender compression deformation test:

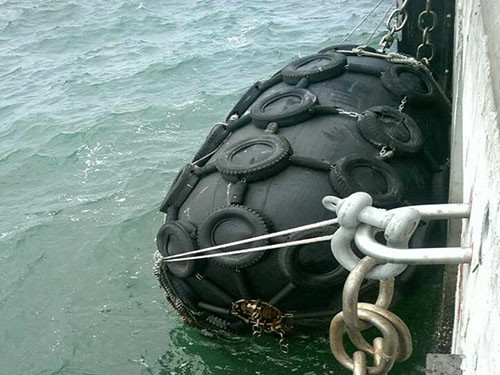

Pneumatic rubber fender product case

Service tenet:

Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;

Rigorous and pragmatic, considerate; Serve every user attentively.

After-sales service:

1. All products of the company are produced in strict accordance with ISO17357:2014 standards.

2, the company's products in normal use, the life of 8-10 years.

3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.

4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.

5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.

6. Instruct or participate in the implementation and application of products to various projects.

7. Provide pre-sale, in-sale and after-sale services

Qingdao Jiexing Marine Equipment Co., Ltd. is a wholly owned subsidiary of Qingdao Beierte Marine Technology Co., LTD.

Qingdao Jiexing Marine equipment company mainly contracts import and export projects. The company set design, research and development, production in one; The main production of Marine fender, pneumatic rubber fender, yokohama fender, Marine launch air bags, foam filled fender, salvage air bags and other rubber products.

The company pioneered the use of nano polymer materials, raw materials, semi-finished products, finished products with data, product performance is improved by 10%, its molding process for the overall winding, tensile strength, elongation, hardness, adhesion, aging resistance, fixed body and other comprehensive indicators, far higher than the industry standard.

All products of the company have passed ISO9001:2008 quality management system certification and product quality certification of CCS, ABS, BV, DNV, GL, LR and other classification societies, and are insured by PICC property insurance.

The company fender products for CNOOC, Zhenhua Heavy Industries, Shanghai Shipyard, China Merchant Heavy Industries, CIMC Raffles and other large enterprises designated procurement qualified suppliers; And sold to the United States, South Korea, Southeast Asia, Indonesia, Russia and other countries and regions

The company with high quality products, perfect after-sales service and good reputation, won the trust of the majority of users. We sincerely look forward to cooperating with you for mutual benefit and a better tomorrow.

General Manager's Office

Ministry of Commerce

Office building

corner of the factory

A corner of the production workshop
