The Yokohama Fender Is A Marine Inflatable Fender Made Up Of A Tyre
Chain
Marine inflatable fender features:
1, large energy absorption, small reaction force, so as to ensure
that neither damage the hull nor damage the shore wall.
2, simple installation, portable, in any ship, any sea area is not
affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the
force after the force is exerted. After the extrusion of the
pneumatic rubber fender, more than 95% of the product will be
released immediately after the force.
4, good economic performance, compared with the fender, Beierte
pneumatic fenders economic performance is good, cost-effective,
reliable quality. Beierte yokohama fender undergoes inspection to
ensure its quality from raw material purchasing, product ordering,
product production and product inspection.
Common dimensions and performance tables for Marine inflatable
fenders
| SIZE | Initial pressure is 80 kPa Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 500 | 1000 | 87 | 9 |
| 600 | 1000 | 100 | 10 |
| 700 | 1500 | 182 | 28 |
| 1000 | 1500 | 241 | 40 |
| 1000 | 2000 | 340 | 54 |
| 1200 | 2000 | 392 | 69 |
| 1350 | 2500 | 563 | 100 |
| 1500 | 3000 | 763 | 174 |
| 1700 | 3000 | 842 | 192 |
| 2000 | 3500 | 1152 | 334 |
| 2000 | 4000 | 1591 | 386 |
| 2500 | 4000 | 1817 | 700 |
| 2500 | 5500 | 2655 | 882 |
| 3000 | 5000 | 2715 | 1080 |
| 3000 | 6000 | 3107 | 1311 |
| 3300 | 4500 | 2478 | 1642 |
| 3300 | 6000 | 3654 | 2340 |
| 3300 | 6500 | 3963 | 2534 |
Instructions for operation and maintenance
1. The maximum deformation of Marine inflatable fender in the use
process is 60% (except for special ship type or special operation),
and the use pressure is 50kpa-80kpa (the use pressure can be
determined according to the user's ship type, tonnage size and near
environment).
2. The inflatable fender of the ship should be used to avoid the
puncture and scratch of sharp objects; And timely maintenance and
maintenance, in general 5- 6 months for a pressure test.
3. Check regularly whether the fender body is puncted or scratched.
The surface objects in contact with the fender shall not have sharp
protruding hard objects to prevent puncturing the fender. When the
fender is in use, the cable or chain or wire rope hanging the
fender shall not be knotted.
4. When the fender is not used for a long time, it should be
cleaned and dried, filled with appropriate amount of gas, and
placed in a dry, cool and ventilated place.
5. The fender should be kept away from heat, and should not contact
with acid, alkali, grease and organic solvent.
6, do not pile up when not in use, do not pile up heavy objects on
the fender.
Pneumatic rubber fender structure diagram:

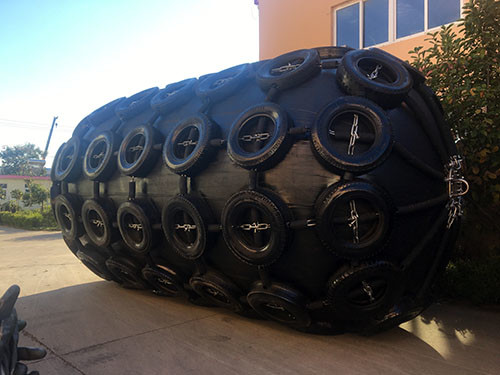

Pneumatic rubber fender product picture
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
