Floatable pneumatic Marine fender wear-resistant inflatable rubber ship fender protective equipment

Introduction to pneumatic Marine fender

Pneumatic Marine fender is a kind of ship buffering and protection supplies, widely used in ships, offshore facilities, offshore platforms, ports and wharves and other fields. Pneumatic Marine fender is more practical and economical than general ship fender, so it is popular.

Yokohama fender is a rubber airtight container made of gluon cloth as skeleton material. Fender is filled with compressed air and can float on the water. It serves as an important buffer medium between ship and ship berthing and between ship and dock. At the same time, inflatable rubber fender can absorb the impact energy of ship movement, reduce the ship's recoil force, and greatly improve the safety of ship docking.

With air as the medium, the compressed air is used to absorb the impact energy, so that the ship is flexible when docking, so as to achieve the effect of collision prevention and avoidance.

Pneumatic Marine fender features:

1, large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.

2, simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.

3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.

4, good economic performance, compared with the fender, beierte inflatable rubber fender economic performance is good, cost-effective, reliable quality. Beierte Pneumatic Marine Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality

After-sales service for pneumatic Marine fender:

1. All products of the company are produced in strict accordance with ISO17357:2014 standards.

2, the company's products in normal use, the life of 8-10 years.

3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.

4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.

5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.

6. Instruct or participate in the implementation and application of products to various projects.

7. Provide pre-sale, in-sale and after-sale services

Pneumatic Marine fender operating instructions and maintenance precautions:

1. The maximum deformation of Marine inflatable fender in the use process is 60% (except for special ship type or special operation), and the use pressure is 50kpa-80kpa (the use pressure can be determined according to the user's ship type, tonnage size and near environment).

2, pneumatic rubber fender should pay attention to avoid sharp objects in the use of puncture and scratch; And timely maintenance and maintenance, in general 5- 6 months for a pressure test.

3, often check the pneumatic rubber fender body for puncture, scratch. The surface objects in contact with the fender shall not have sharp protruding hard objects to prevent puncturing the fender. When the fender is in use, the cable or chain or wire rope hanging the fender shall not be knotted.

4. When the Yokohama fender is not in use for a long time, it should be cleaned, dried in the sun, filled with appropriate amount of gas, and placed in a dry, cool and ventilated place.

5. Shipboard fender should be kept away from heat, and should not contact with acid, alkali, grease and organic solvents.

6, do not pile up when not in use, do not pile up heavy objects on the fender.

Common dimensions and performance table of pneumatic Marine fender:

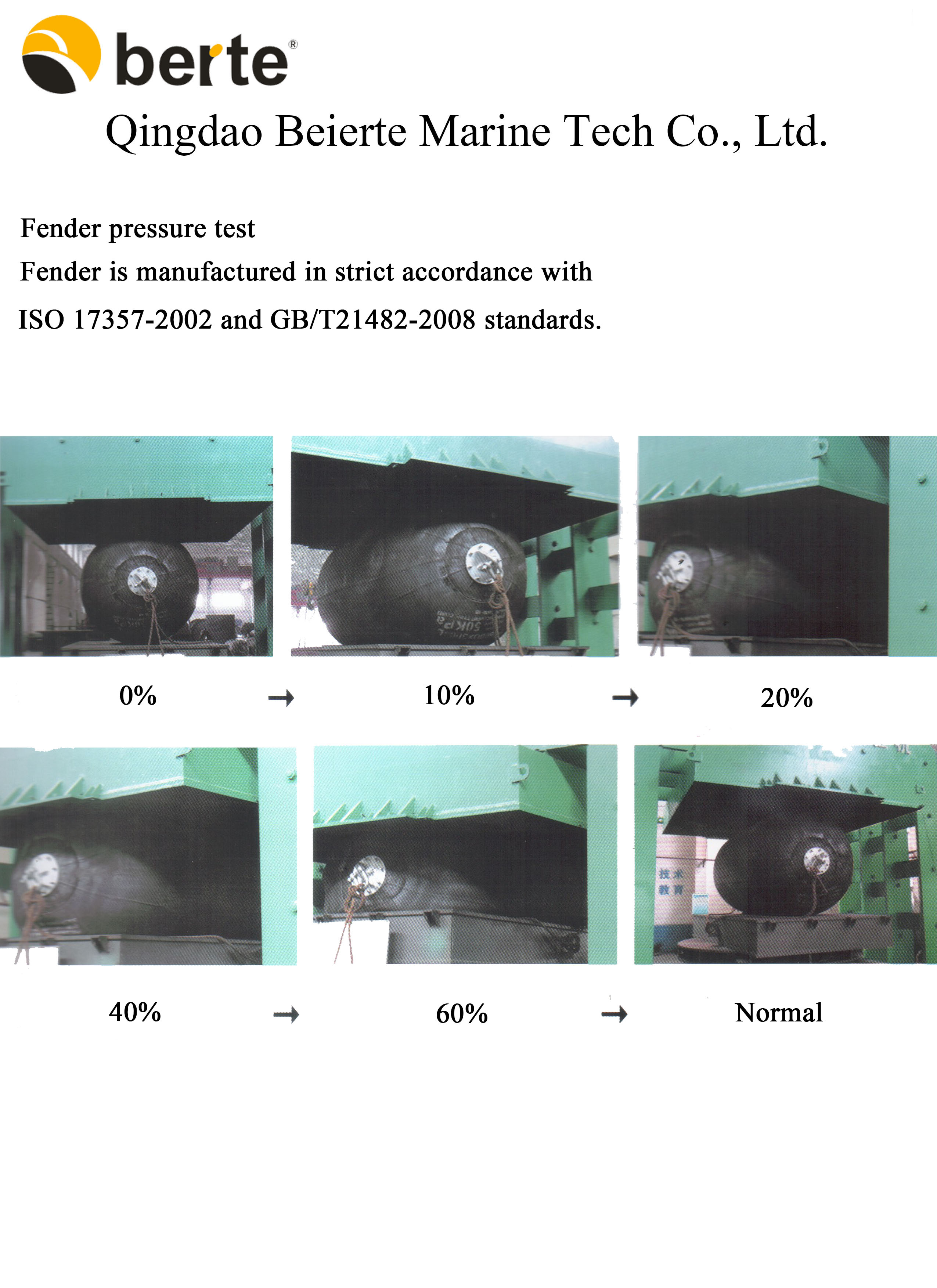

Pneumatic Marine fender pressure testing:

Qingdao Jiexing Marine Equipment Co., Ltd. is a wholly owned subsidiary of Qingdao Beierte Marine Technology Co., LTD.

Qingdao Jiexing Marine equipment company mainly contracts import and export projects. The company set design, research and development, production in one; The main production of Marine fender, pneumatic rubber fender, yokohama fender, Marine launch air bags, foam filled fender, salvage air bags and other rubber products.

The company pioneered the use of nano polymer materials, raw materials, semi-finished products, finished products with data, product performance is improved by 10%, its molding process for the overall winding, tensile strength, elongation, hardness, adhesion, aging resistance, fixed body and other comprehensive indicators, far higher than the industry standard.

All products of the company have passed ISO9001:2008 quality management system certification and product quality certification of CCS, ABS, BV, DNV, GL, LR and other classification societies, and are insured by PICC property insurance.

The company fender products for CNOOC, Zhenhua Heavy Industries, Shanghai Shipyard, China Merchant Heavy Industries, CIMC Raffles and other large enterprises designated procurement qualified suppliers; And sold to the United States, South Korea, Southeast Asia, Indonesia, Russia and other countries and regions

The company with high quality products, perfect after-sales service and good reputation, won the trust of the majority of users. We sincerely look forward to cooperating with you for mutual benefit and a better tomorrow.
