Foam Fender Has Long Service Life And Is Maintenance-Free EVA
Fender
Main business of the company
The company long-term commitment to ship berthing protection,
yokohama, pneumatic fender, Marine fender, inflatable rubber
fender, foam filled fender, polyurethane fender of the research and
development, production and sales, using natural rubber and styrene
butadiene rubber, polybutadience rubber, such as synthetic rubber,
rubber hard, more abrasion resistance and toughness, product use
high quality materials and special explosion-proof technology,
sightseeing along the outside, good wear resistance, aging
resistance, air tightness, high intensity, long service life, high
quality, and adopted the ISO9001: 2008 international quality
management system certification and CCS, ABS, BV, DNV, GL, LR and
other product quality certification, and for the national large
construction enterprises and wharf protection to provide products
and services.
Common dimensions and properties of foam-filled fenders
SIZE | Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 300 | 500 | 38 | 1.8 |
| 400 | 800 | 56 | 2.6 |
| 500 | 1000 | 71 | 3.8 |
| 600 | 1000 | 95 | 5 |
| 700 | 1500 | 150 | 24.5 |
| 1000 | 1500 | 205 | 49 |
| 1000 | 2000 | 274 | 64 |
| 1200 | 2000 | 337 | 93 |
| 1200 | 2400 | 405 | 129 |
| 1350 | 2500 | 514 | 172 |
| 1500 | 3000 | 624 | 216 |
| 1700 | 3000 | 807 | 260 |
| 2000 | 3500 | 990 | 456 |
| 2000 | 4000 | 1163 | 652 |
| 2500 | 4000 | 1472 | 1044 |
| 2500 | 5000 | 1609 | 1228 |
| 3000 | 5000 | 2050 | 1412 |
| 3000 | 6000 | 2460 | 1695 |
| 3300 | 6500 | 2665 | 1836 |
Foam filled fender best features
1, with high floating performance, not affected by the tide.
2, bright colors, according to customer requirements to provide a
variety of colors.
3, compared with the inflatable fender, the use process does not
need to add gas, not afraid of scratching, not afraid of puncture,
not afraid of friction, sea water resistance, acid and alkali
resistance; The service life is as long as 25--30 years, with
safety and maintenance free sex.
4, although it is a solid core, but the weight is very light,
convenient installation and mobile flexible.
5. When the compression deformation is 60%, the reaction force is
obvious from small to large, and the energy absorption is very
high.
Schematic diagram of foam-filled fender structure

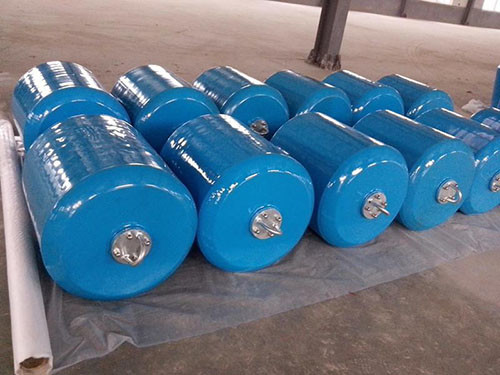

Foam filled fender product case
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
