Polyurethane Fender Can Be Made Of Various Colors Of Foam Filled
Fender
Foam filled fender is introduced
1, Foam filled fender is also called polyurethane fender, floating
fender, EVA fender
2, Foam filled fender is a compression fender, which is made of
polyurea material as outer protective layer and EVA foaming
material as buffer medium. In the process of use, the impact energy
of the ship can be absorbed through its compression deformation, so
as to reduce the damage to the wharf and the ship.
3, Beierte polyurethane fender, the biggest characteristics of the
floating fender is: with strong floating performance, not affected
by tidal range; Bright color, can be provided according to user
requirements of various colors; The use process does not need to
inflate, with safety and maintenance free; Adopt flange connection,
installation, movement, convenient and flexible.
4, The Beierte EVA fender reaction from small to large and high
energy absorption, suitable for wharf, special tidal difference
wharf and two ships on the sea to receive ship, barge and other
use, has been widely used in wharves, docks, ships, etc.
Foam filled fender performance dimensions
SIZE | Compression deformation 60% |
| Diameter(mm) | Length (mm) | Reactionforce-kn | Energyabsorb kn-m |
| 300 | 500 | 38 | 1.8 |
| 400 | 800 | 56 | 2.6 |
| 500 | 1000 | 71 | 3.8 |
| 600 | 1000 | 95 | 5 |
| 700 | 1500 | 150 | 24.5 |
| 1000 | 1500 | 205 | 49 |
| 1000 | 2000 | 274 | 64 |
| 1200 | 2000 | 337 | 93 |
| 1200 | 2400 | 405 | 129 |
| 1350 | 2500 | 514 | 172 |
| 1500 | 3000 | 624 | 216 |
| 1700 | 3000 | 807 | 260 |
| 2000 | 3500 | 990 | 456 |
| 2000 | 4000 | 1163 | 652 |
| 2500 | 4000 | 1472 | 1044 |
| 2500 | 5000 | 1609 | 1228 |
| 3000 | 5000 | 2050 | 1412 |
| 3000 | 6000 | 2460 | 1695 |
| 3300 | 6500 | 2665 | 1836 |
Schematic diagram of foam-filled fender structure
Foam filled fender best features
1, with high floating performance, not affected by the tide.
2, bright colors, according to customer requirements to provide a
variety of colors.
3, compared with the inflatable fender, the use process does not
need to add gas, not afraid of scratching, not afraid of puncture,
not afraid of friction, sea water resistance, acid and alkali
resistance; The service life is as long as 25--30 years, with
safety and maintenance free sex.
4, although it is a solid core, but the weight is very light,
convenient installation and mobile flexible.
5. When the compression deformation is 60%, the reaction force is
obvious from small to large, and the energy absorption is very
high.

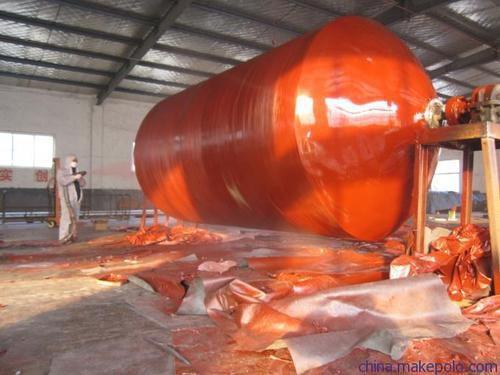

Foam filled fender product case
Service tenet:
Integrity management, quality first; Create a world famous brand,
do a hundred years of enterprise;
Rigorous and pragmatic, considerate; Serve every user attentively.
After-sales service:
1. All products of the company are produced in strict accordance
with ISO17357:2014 standards.
2, the company's products in normal use, the life of 8-10 years.
3, the company will carry out strict inspection on each product
before leaving the factory, to ensure that all products without any
quality problems before leaving the factory, so that every user can
rest assured with.
4, the company's product quality warranty period of 2 years,
quality problems occurred during the warranty period free repair or
replacement.
5. Responsible for guiding repair and maintenance process, and
long-term supply of repair materials and tools.
6. Instruct or participate in the implementation and application of
products to various projects.
7. Provide pre-sale, in-sale and after-sale services
