35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia

Qingdao Jiexing Marine Equipment Co., Ltd. Qingdao Beierte Marine Technology Co., Ltd
Contact Now
    Buy cheap 35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia from wholesalers

    Buy cheap 35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia from wholesalers
    • Buy cheap 35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia from wholesalers
    • Buy cheap 35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia from wholesalers
    • Buy cheap 35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia from wholesalers
    • Buy cheap 35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia from wholesalers

    35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia

    Ask Lasest Price
    Brand Name : Beierte
    Model Number : Custom
    Certification : CCS/ABS/LR/GL/BV
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 450 pcs/ month
    Delivery Time : 2-10 days
    • Product Details
    • Company Profile

    35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia

    Ship Launching Airbags For 35000 Ton Bulk Carrier Launching

    Characteristics of ship launching airbags:

    Ship airbags to water is an innovation technology with independent intellectual property rights in China, is a very promising new process, it overcomes the small and medium-sized shipyard ship ever repaired the ability to slide, slide the restriction of traditional craft, because has the characteristics of less investment, quick effect, safe and reliable, get the welcome of the shipbuilding industry. Ship hoisting gasbag and scroll air bags as the main tool that will ship retainer on the balloon, from shipbuilding and ship repairing field into waters or migrate ashore from the water, using the Marine rubber airbag low inflation pressure, large bearing area and the characteristic of the still easy rolling after large deformation, use hoisting gasbag first ship lift from the block, on the scroll air bags, and then through the rolling traction and airbag, make the ship slowly slide into the water. According to its innovative technology, Qingdao beierte ship has designed and produced a new type of integrated winding high strength Marine launching airbag, thus providing the most effective guarantee for the large ship launching airbags process.


    Ship launching airbags performance:

    DiameterLayerWorking pressureWorking heightGuaranteed bearing capacity per unit length(T/M)
    D=1.0m6-80.18MPa-0.22MPa0.5m-0.8m≥13.7
    D=1.2m6-80.17MPa-0.2MPa0.6m-1.0m≥16.34
    D=1.5m6-80.16Mpa-0.18MPa0.7m-1.2m≥18
    D=1.8m6-100.15MPa-0.18MPa0.7m-1.5m≥20
    D=2.0m8-120.17MPa-0.2MPa0.9m-1.7m≥21.6
    D=2.5m8-120.16MPa-0.19MPa1.0m-2.0m≥23

    Common sizes of ship launching airbags:

    SizeDiameter1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m

    Effective Length

    8m, 10m,12m,15m,16m, 18m,20m,22m,24m,Etc.
    Layer

    4layer,5layer,6layer,8layer,10layer,12layer

    Remark:

    According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different.


    If there are special requirements, can be customized.

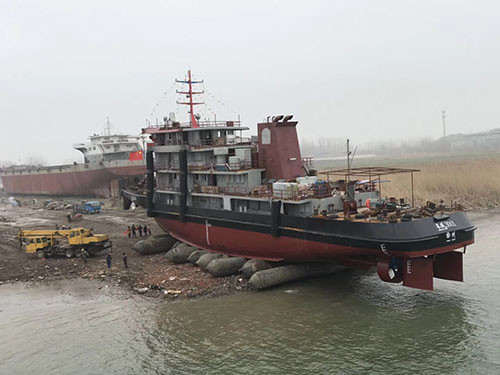

    Marine launching airbag product display

    35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia35000 Ton Bulk Carrier Boat Launching Airbag Salvage Air Bags 2.5m Dia


    Service tenet:

    Integrity management, quality first; Create a world famous brand, do a hundred years of enterprise;

    Rigorous and pragmatic, considerate; Serve every user attentively.


    After-sales service:

    1. All products of the company are produced in strict accordance with ISO17357:2014 standards.

    2, the company's products in normal use, the life of 8-10 years.

    3, the company will carry out strict inspection on each product before leaving the factory, to ensure that all products without any quality problems before leaving the factory, so that every user can rest assured with.

    4, the company's product quality warranty period of 2 years, quality problems occurred during the warranty period free repair or replacement.

    5. Responsible for guiding repair and maintenance process, and long-term supply of repair materials and tools.

    6. Instruct or participate in the implementation and application of products to various projects.

    7. Provide pre-sale, in-sale and after-sale services
