Floating Pneumatic Fender 80KPa Is suitable for ships material of rubber

Use of Yokohama Fender:

Floating Pneumatic Fender is a kind of ship supplies for berth buffer and protection. It is widely used in ships, offshore facilities, offshore platforms, ports and docks, etc. The yokohama pneumatic fender is more practical and economical than the general Marine fender, so it is popular.

Floating Pneumatic Fender is a rubber airtight container made of gluon cloth as skeleton material. The fender is filled with compressed air and can float on the water. It serves as an important buffer medium between ship and ship berthing and between ship and dock. At the same time, inflatable rubber fender can absorb the impact energy of the ship's movement, reduce the ship's recoil force, and greatly improve the safety of the ship's docking.

With air as the medium, the compressed air is used to absorb the impact energy, so that the ship is flexible when docking, so as to achieve the effect of collision prevention and avoidance. Yokohama fender has been widely used in oil tankers, container ships, engineering ships, ocean fishing boats, offshore platforms, large docks, military docks, large bridge piers and other ships and offshore platforms.

There are two types of Yokohama fenders:

1, sheath type

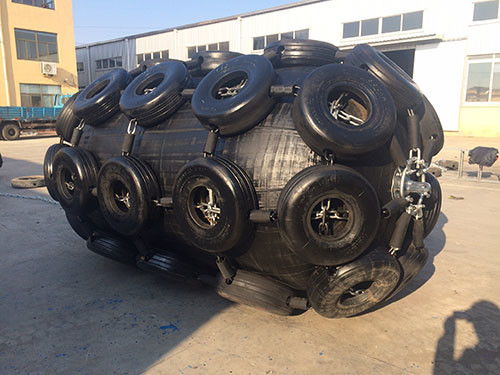

The sheath type Floating Pneumatic Fender is covered with a sheath, which consists of a chain, or nylon rope net, old tires (or rubber sleeves). The longitudinal break point of the chain or nylon rope net is connected with one or two adjacent mesh sets by cable or pull rope. The mesh sets will be attached with tires or rubber sleeves to provide protection for the fender body.

2. No sheath type

Fender without sheath type inflatable rubber fender is the fender without net tire chain covering the surface. This kind of fender is light and easy to move. At the same time, it makes the fender move more flexibly in the work to deal with the impact from various angles.

Inflatable rubber fender is a new type of winding fender, abrasion resistance, scratch resistance, resistance to ageing, stung, etc, the appearance of the most prominent feature is the surface of the pneumatic rubber fender ontology by a tire chain net type sheathed packages, protect the fender of ontology is stung by sharp objects, scratches, drop and so on, which is a fender ontology use fixed number of year.

Common dimensions and properties of yokohama fender:

Our Products

Diagram of Yokohama Fender

Qingdao Jiexing Marine Equipment Co., Ltd. is a wholly owned subsidiary of Qingdao Beierte Marine Technology Co., LTD.

Qingdao Jiexing Marine equipment company mainly contracts import and export projects. The company set design, research and development, production in one; The main production of Marine fender, pneumatic rubber fender, yokohama fender, Marine launch air bags, foam filled fender, salvage air bags and other rubber products.

The company pioneered the use of nano polymer materials, raw materials, semi-finished products, finished products with data, product performance is improved by 10%, its molding process for the overall winding, tensile strength, elongation, hardness, adhesion, aging resistance, fixed body and other comprehensive indicators, far higher than the industry standard.

All products of the company have passed ISO9001:2008 quality management system certification and product quality certification of CCS, ABS, BV, DNV, GL, LR and other classification societies, and are insured by PICC property insurance.

The company fender products for CNOOC, Zhenhua Heavy Industries, Shanghai Shipyard, China Merchant Heavy Industries, CIMC Raffles and other large enterprises designated procurement qualified suppliers; And sold to the United States, South Korea, Southeast Asia, Indonesia, Russia and other countries and regions

The company with high quality products, perfect after-sales service and good reputation, won the trust of the majority of users. We sincerely look forward to cooperating with you for mutual benefit and a better tomorrow.
